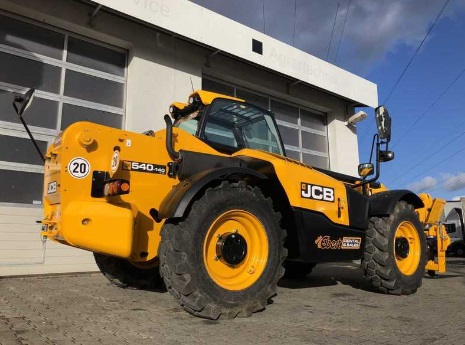

Download Complete Service Repair Manual for JCB 533-105, 535-v125, 540-140, 540-170, 540-200, 540-v140, 540-v180, 550-140, 550-170 LOADALL (ROUGH TERRAIN VARIABLE REACH TRUCK).
EN – 9813/9100 – ISSUE 1 – 11/2017 & EN – 9813/7650 – ISSUE 2 – 04/2018
This Factory Service Repair Manual offers all the service and repair information about JCB 533-105, 535-v125, 535-v140, 540-140, 540-170, 540-200, 540-v140, 540-v180, 550-140, 550-170 LOADALL (ROUGH TERRAIN VARIABLE REACH TRUCK). The information on this manual covered everything you need to know when you want to repair or service JCB 533-105, 535-v125, 535-v140 , 535-v140, 540-140, 540-170, 540-200, 540-v140, 540-v180, 550-140, 550-170 LOADALL (ROUGH TERRAIN VARIABLE REACH TRUCK).
Models Covered:
533-105 S/N: from 2460601 onwards
533-105 S/N: from 2902000 onwards
535-v125 S/N: from 2460601 onwards
535-v125 S/N: from 2902000 onwards
540-140 S/N: from 2460601 onwards
540-140 S/N: from 2902000 onwards
535-v140 S/N: from 2902000 onwards
540-170 S/N: from 2460601 onwards
540-170 S/N: from 2902000 onwards
540-200 S/N: from 2460601 onwards
540-200 S/N: from 2902000 onwards
540-v140 S/N: from 2460601 onwards
540-v140 S/N: from 2902000 onwards
540-v180 S/N: from 2460601 onwards
540-v180 S/N: from 2902000 onwards
550-140 S/N: from 2460601 onwards
550-140 S/N: from 2902000 onwards
550-170 S/N: from 2460601 onwards
550-170 S/N: from 2902000 onwards
Manual Contents:
01 – Machine
03 – Attachments, Couplings and Load Handling
06 – Body and Framework
09 – Operator Station
12 – Heating, Ventilating and Air- Conditioning (HVAC)
15 – Engine
18 – Fuel and Exhaust System
21 – Cooling System
24 – Brake System
25 – Steering System
27 – Driveline
30 – Hydraulic System
33 – Electrical System
72 – Fasteners and Fixings
75 – Consumable Products
78 – After Sales
..
Total Pages:
EN – 9813/9100 – ISSUE 1 – 11/2017 : 3544 pages
EN – 9813/7650 – ISSUE 2 – 04/2018 : 3942 pages
This manual can be used by anyone from a first time owner/amateur to a professional technician.Even the most novice mechanic can also easily follow the step-by-step guides which are made simple by the illustrations and drawings.Keep this manual handy and use it often. Performing routine, preventive maintenance will save you time & money by helping to prevent premature failure and unnecessary repairs.
Your email inbox will receive a download link immediately after your payment is completed
So please make sure your email address is correct.
File Format: PDF
Compatible: All Versions of Windows & Mac
Language: English
