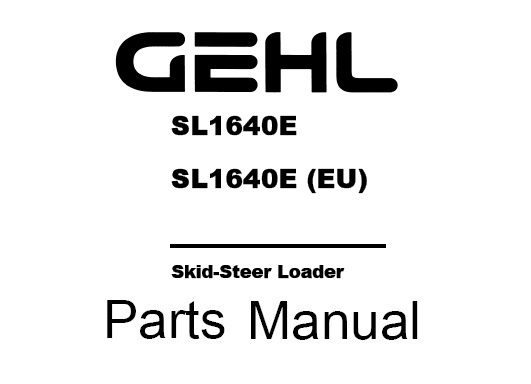

Download Complete Parts Manual for GEHL SL1640E, SL1640E (EU) Skid-Steer Loader.
This Factory Parts Manual offers all the Parts informations for GEHL SL1640E, SL1640E (EU) Skid-Steer Loader. The information on this manual covered everything you need to know when you want to GEHL SL1640E, SL1640E (EU) Skid-Steer Loader.
Form No.917374 Revision C 04/10
Parts Manual Covers:
SECTION A: MAIN LOADER COMPONENT
Chassis
ROPS/FOPS Structure/Interior
Restraint Bar
Seat and Seat Belt Options
Lift Arm
Attachment Bracket
Wheel Drives
Engine with Engine Controls
Air Cleaner and Exhaust
Radiator/Cooler
Hydrostatic System with Drive Motors
Drive Motors with Brake Release Valve
Hydraulics – Chassis, Non-Self Level and Self-Level
Hydraulics – Lift Arm
Controls – Lift/Tilt and Wheel Drives
Electrical – Chassis, Engine Disconnect and Backup Alarm
Electrical – ROPS/FOPS
Electrical – Lights and Rearview Mirror
Four-Point Lift and Horn Kit
Sound Suppression
Tires
Decals
SECTION B: HYDRAULIC COMPONENTS
Lift Cylinder
Tilt Cylinder
Tandem Pump
Gear Pump
Self-Leveling Valve
Solenoid Valves – Lift and Tilt
Solenoid Valves – Brake and Brake Release
Main Control Valve
Drive Motors with Parking Brake
SECTION C: KITS AND ACCESSORIES
Analysis Kits, Filter Chart and Other Available Accessories
Rear View Mirror Kit 806894
Strobe Lamp Kit 808279
Backup Alarm Kit 811513
Dome Light Kit 811519
Horn Kit 811514
Cab Door Kit 811624
Cab Heater Kit 811622
SECTION D: SCHEMATICS
Hydrostatic/Hydraulic Schematic
Electrical Schematic
Numerical Index
O-Ring Table, Coupling & Adapter Torque Table
Torque Specifications Table
This manual can be used by anyone from a first time owner/amateur to a professional technician.Even the most novice mechanic can also easily follow the step-by-step guides which are made simple by the illustrations and drawings.Keep this manual handy and use it often. Performing routine, preventive maintenance will save you time & money by helping to prevent premature failure and unnecessary repairs.
